A slewing bearing may look like a simple large ring, but it plays a critical role in heavy machinery. So, how does a slewing bearing work? In simple terms, it supports heavy loads while allowing equipment to rotate smoothly and accurately.
A slewing bearing is a large mechanical bearing designed to connect two machine structures while allowing one part to rotate relative to the other.
A typical slewing bearing consists of inner and outer rings, rolling elements, raceways, seals, lubrication points, and sometimes integrated gear teeth.
The inner and outer rings form the main structure of the bearing and provide strong mounting surfaces for the equipment.
Precisely machined raceways guide the rolling elements and distribute loads efficiently during operation.
Balls or rollers move between the raceways, reducing friction and allowing smooth rotational movement.
Seals help prevent dust, water, and other contaminants from entering the bearing. Lubrication reduces friction and protects the internal components.
When a drive system applies torque, one ring rotates relative to the other. The rolling elements transfer loads between the rings while allowing controlled rotation.
One major advantage of a slewing bearing is its ability to handle radial loads, axial loads, and overturning moments at the same time.
Radial loads act perpendicular to the rotation axis and are transferred through the rolling elements and raceways.
Axial loads act along the rotation axis. The bearing structure distributes these forces safely through its raceways.
Heavy machinery can create large overturning moments. A properly designed slewing bearing helps resist these forces and maintain machine stability.
Many slewing bearings include gear teeth that work with a pinion to provide controlled rotation.
Depending on the machine design, the gear teeth can be positioned on the inner ring or outer ring.
Proper lubrication is essential for slewing bearing performance. Regular greasing helps reduce friction, wear, heat, and unexpected downtime.
Clean and suitable grease creates a protective film between moving surfaces, helping the bearing rotate smoothly and extending its service life.
Slewing bearings are widely used in excavators, cranes, wind turbines, construction machinery, rotary tables, and industrial equipment.

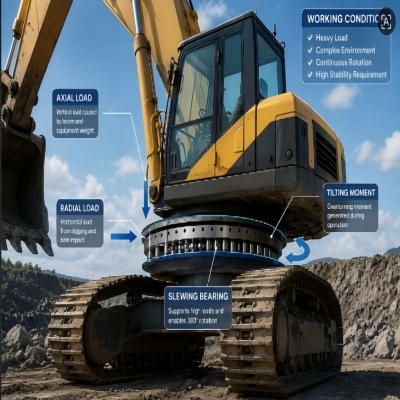

In an excavator, the slewing bearing connects the upper structure with the undercarriage and allows the upper body to rotate 360 degrees.
Cranes use slewing bearings for controlled rotation, while wind turbines use them in yaw and blade-pitch systems.
So, how does a slewing bearing work? It combines precision raceways, rolling elements, lubrication, seals, and sometimes gearing to support heavy loads while enabling smooth rotation. Choosing the right slewing bearing can significantly improve machine reliability, efficiency, and service life.
