Slewing bearings comprise an inner ring and an outer ring, one of which usually incorporates a gear. Together with attachment holes in both rings, they enable an optimized power transmission with a simple and quick connection between adjacent machine components. The bearing raceways, in conjunction with the rolling elements and cages or spacers, are designed to accommodate loads acting singly or in combination, and in any direction.

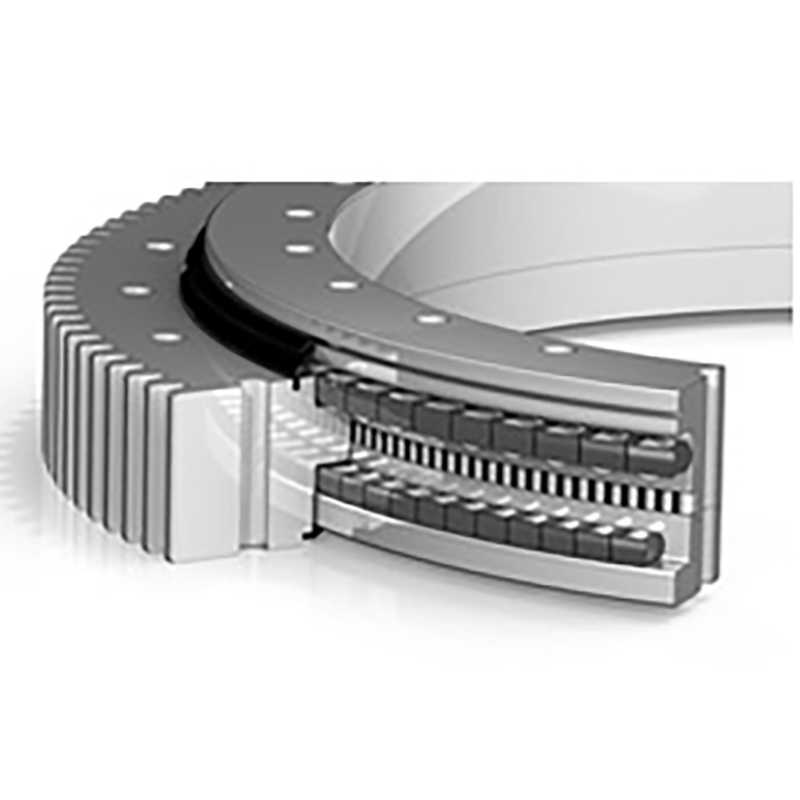

It has three races, and the upper, lower and radial raceways are separated, so that the load of each row of rollers can be determined accurately.
No. | Type | Configuration & Structural Dimension | Mounting Hole Dimension | Gear Parameter | Weight | |||||||||||||||||||||||
130 | 131 132 | 133 134 | D | d | H | H1 | h | 130 133/134 | 131 132 | n1 | D1 | D2 | n | Type 0 | Type 1,2,3 | b | m | 131 132 | 133 134 | 130 | 131 132 | 133 134 | ||||||
Steel Ball Spec. DL | D3 | d1 | D3 | d1 | Φ | M | T | z | da | z | da | kg | ||||||||||||||||
1 | 130.25.500 (25.500) | 131.25.500 132.25.500 | 133.25.500 134.25.500 | 634 | 366 | 148 | 138 | 32 | 474 | 463 | 537 | 526 | 4 | 598 | 402 | 24 | Φ18 | 16 | 32 | 80 | 5 6 | 130 108 | 664 664.8 | 68 57 | 337 338.4 | 191 | 200 200 | 198 198 |
2 | 130.25.560 (25.560) | 131.25.560 132.25.560 | 133.25.560 134.25.560 | 694 | 426 | 148 | 138 | 32 | 534 | 523 | 597 | 586 | 4 | 658 | 462 | 25 | Φ18 | 16 | 32 | 80 | 5 6 | 142 118 | 724 724.8 | 80 67 | 397 398.4 | 214 | 224 224 | 222 220 |
3 | 130.25.630 (25.630) | 131.25.630 132.25.630 | 133.25.630 134.25.630 | 764 | 496 | 148 | 138 | 32 | 604 | 593 | 667 | 656 | 4 | 728 | 532 | 28 | Φ18 | 16 | 32 | 80 | 6 8 | 132 98 | 808.8 806.4 | 77 58 | 458.4 459.2 | 240 | 262 257 | 253 251 |
4 | 130.25.710 (25.710) | 131.25.710 132.25.710 | 133.25.710 134.25.710 | 844 | 576 | 148 | 138 | 32 | 684 | 673 | 747 | 736 | 4 | 808 | 612 | 28 | Φ18 | 16 | 32 | 80 | 6 8 | 145 108 | 886.8 886.4 | 90 68 | 536.4 539.2 | 272 | 295 291 | 288 284 |
5 | 130.32.800 (32.800) | 131.32.800 132.32.800 | 133.32.800 134.32.800 | 964 | 636 | 182 | 172 | 40 | 770 | 759 | 841 | 830 | 4 | 920 | 680 | 36 | Φ22 | 20 | 40 | 120 | 8 10 | 123 98 | 1006.4 1008 | 75 60 | 595.2 594 | 459 | 490 487 | 483 481 |
6 | 130.32.900 (32.900) | 131.32.900 132.32.900 | 133.32.900 134.32.900 | 1064 | 736 | 182 | 172 | 40 | 870 | 859 | 941 | 930 | 4 | 1020 | 780 | 36 | Φ22 | 20 | 40 | 120 | 8 10 | 135 108 | 1102.4 1108 | 87 70 | 691.2 694 | 519 | 549 562 | 551 545 |
7 | 130.32.1000 (32.1000) | 131.32.1000 132.32.1000 | 133.32.1000 134.32.1000 | 1164 | 836 | 182 | 172 | 40 | 970 | 959 | 1041 | 1030 | 5 | 1120 | 880 | 40 | Φ22 | 20 | 40 | 120 | 10 12 | 119 99 | 1218 1221.6 | 79 66 | 784 784.8 | 577 | 631 631 | 618 613 |
8 | 130.32.1120 (32.1120) | 131.32.1120 132.32.1120 | 133.32.1120 134.32.1120 | 1284 | 956 | 182 | 172 | 40 | 1090 | 1079 | 1161 | 1150 | 5 | 1240 | 1000 | 40 | Φ22 | 20 | 40 | 120 | 10 12 | 131 109 | 1338 1341.6 | 91 76 | 904 904.8 | 650 | 710 710 | 698 691 |
9 | 130.40.1250 (40.1250) | 131.40.1250 132.40.1250 | 133.40.1250 134.40.1250 | 1445 | 1055 | 220 | 210 | 50 | 1213 | 1200 | 1300 | 1287 | 5 | 1393 | 1107 | 45 | Φ26 | 24 | 48 | 150 | 12 14 | 123 105 | 1509.6 1509.2 | 83 71 | 988.8 985.6 | 1038 | 1137 1126 | 1123 1122 |
10 | 130.40.1400 (40.1400) | 131.40.1400 132.40.1400 | 133.40.1400 134.40.1400 | 1595 | 1205 | 220 | 210 | 50 | 1363 | 1350 | 1450 | 1437 | 5 | 1543 | 1257 | 45 | Φ26 | 24 | 48 | 150 | 12 14 | 136 116 | 1665.6 1663.2 | 96 82 | 1144.8 1139.6 | 1170 | 1299 1281 | 1254 1258 |
11 | 130.40.1600 (40.1600) | 131.40.1600 132.40.1600 | 133.40.1600 134.40.1600 | 1795 | 1405 | 220 | 210 | 50 | 1563 | 1550 | 1650 | 1637 | 6 | 1743 | 1457 | 48 | Φ26 | 24 | 48 | 150 | 14 16 | 131 114 | 1873.2 1868.8 | 96 84 | 1335.6 1334.4 | 1341 | 1501 1471 | 1454 1448 |
12 | 130.40.1800 (40.1800) | 131.40.1800 132.40.1800 | 133.40.1800 134.40.1800 | 1995 | 1605 | 220 | 210 | 50 | 1763 | 1750 | 1850 | 1837 | 6 | 1943 | 1657 | 48 | Φ26 | 24 | 48 | 150 | 14 16 | 145 127 | 2069.2 2076.8 | 110 96 | 1531.6 1526.4 | 1518 | 1682 1697 | 1658 1663 |
13 | 130.45.2000 (45.2000) | 131.45.2000 132.45.2000 | 133.45.2000 134.45.2000 | 2221 | 1779 | 231 | 219 | 54 | 1967 | 1945 | 2055 | 2033 | 6 | 2155 | 1845 | 60 | Φ33 | 33 | 60 | 160 | 16 18 | 141 125 | 2300.8 2300.4 | 107 95 | 1702.4 1699.2 | 1494 | 2147 2129 | 2114 2112 |
14 | 130.45.2240 (45.2240) | 131.45.2240 132.45.2240 | 133.45.2240 134.45.2240 | 2461 | 2019 | 231 | 219 | 54 | 2207 | 2185 | 2295 | 2273 | 6 | 2395 | 2085 | 60 | Φ33 | 33 | 60 | 160 | 16 18 | 157 139 | 2556.8 2552.4 | 121 108 | 1926.4 1933.2 | 2197 | 2501 2461 | 2447 2407 |
15 | 130.45.2500 (45.2500) | 131.45.2500 132.45.2500 | 133.45.2500 134.45.2500 | 2721 | 2279 | 231 | 219 | 54 | 2467 | 2445 | 2555 | 2533 | 8 | 2655 | 2345 | 72 | Φ33 | 33 | 60 | 160 | 18 20 | 154 138 | 2822.4 2816 | 122 110 | 2185.2 2188 | 2590 | 2786 2731 | 2862 2834 |
16 | 130.45.2800 (45.2800) | 131.45.2800 132.45.2800 | 133.45.2800 134.45.2800 | 3021 | 2579 | 231 | 219 | 54 | 2767 | 2745 | 2855 | 2833 | 8 | 2955 | 2645 | 72 | Φ33 | 33 | 60 | 160 | 18 20 | 170 153 | 3110.4 3116 | 139 125 | 2491.2 2488 | 2932 | 3061 3079 | 3211 3209 |
17 | 130.50.3150 (50.3150) | 131.50.3150 132.50.3150 | 133.50.3150 134.50.3150 | 3432 | 2868 | 270 | 258 | 65 | 3104 | 3090 | 3213 | 3196 | 8 | 3342 | 2958 | 72 | Φ45 | 42 | 84 | 180 | 20 22 | 174 158 | 3536 3537.6 | 139 126 | 2768 2758.8 | 4551 | 5025 5009 | 4954 4988 |
It has three races, and the upper, lower and radial raceways are separated, so that the load of each row of rollers can be determined accurately. It can bear all kinds of loads at the same time. It is one of the four products with the largest bearing capacity. The shaft and radial dimensions are large, and the structure is firm.
Slewing ring bearings with no gear
Slewing ring bearings with external gear
Slewing ring bearings with internal gear
CNC Vertical Lathe, CNC Horizontal Lathe, CNC Machining Center ,CNC Vertical Machining Center, Gear Sharping Machine,Gear Hobbing Machine, CNC High Speed Gear Milling Machine, CNC Gear Chamfer Machine,CNC Raceway Quenching Machine, CNC Gear quenching machine,CNC All-gear Single Shot Quenching Machine, Inspection Equipment, Well Type Tempering Furnace, Chamber Type Tempering Furnace, CNC Raceway Grinding Machine, CNC Surface Grinding Machine, Radial Drill Machine, Special Boring Machine and so on.
It is especially suitable for heavy machinery requiring large diameters, such as bucket wheel excavators, wheel cranes, marine cranes, port cranes, steel turntables, large tonnage truck cranes and other machinery.
1) Are you a trader or a manufacturer?
We are professional slewing bearing manufacturer with more than 20 years experience, and our factory is located in Jiangsu Province.
2) What are the terms of payment?
We usually accept T/T or L/C.Other terms are negotiable.
3) What is your minimum order quantity?
It depends on what you buy. Under normal circumstances, our minimum order quantity is 1 piece.
4) What's your delivery time?
Our lead time is only 3-7 days if stock is available. If it is our standard type, the delivery time is about 25 days, if it is not standard type, the delivery time is 45~50 days.
5) What about quality control?
We have a perfect quality management system to produce perfect products.Responsible for the careful testing of product quality and specifications, monitoring each production process until packaging is completed to ensure product safety into the container.
6) Can you provide special customization according to the working conditions?
Sure, we can design and produce the slewing bearings for different working conditions.
